BYD Battery Box Premium LVS

The BYD Battery-Box Premium LVS is a modular 48V lithium iron phosphate (LFP) battery pack for use with an external inverter.

Between 1 and 6 battery modules can be used in a single stack to give 4.0 to 24.0 kWh usable capacity.

Alternatively, up to 16 Battery-Box LVS stacks consisting of between 1 and 4 battery modules can be connected in parallel to give a maximum capacity of 256 kWh.

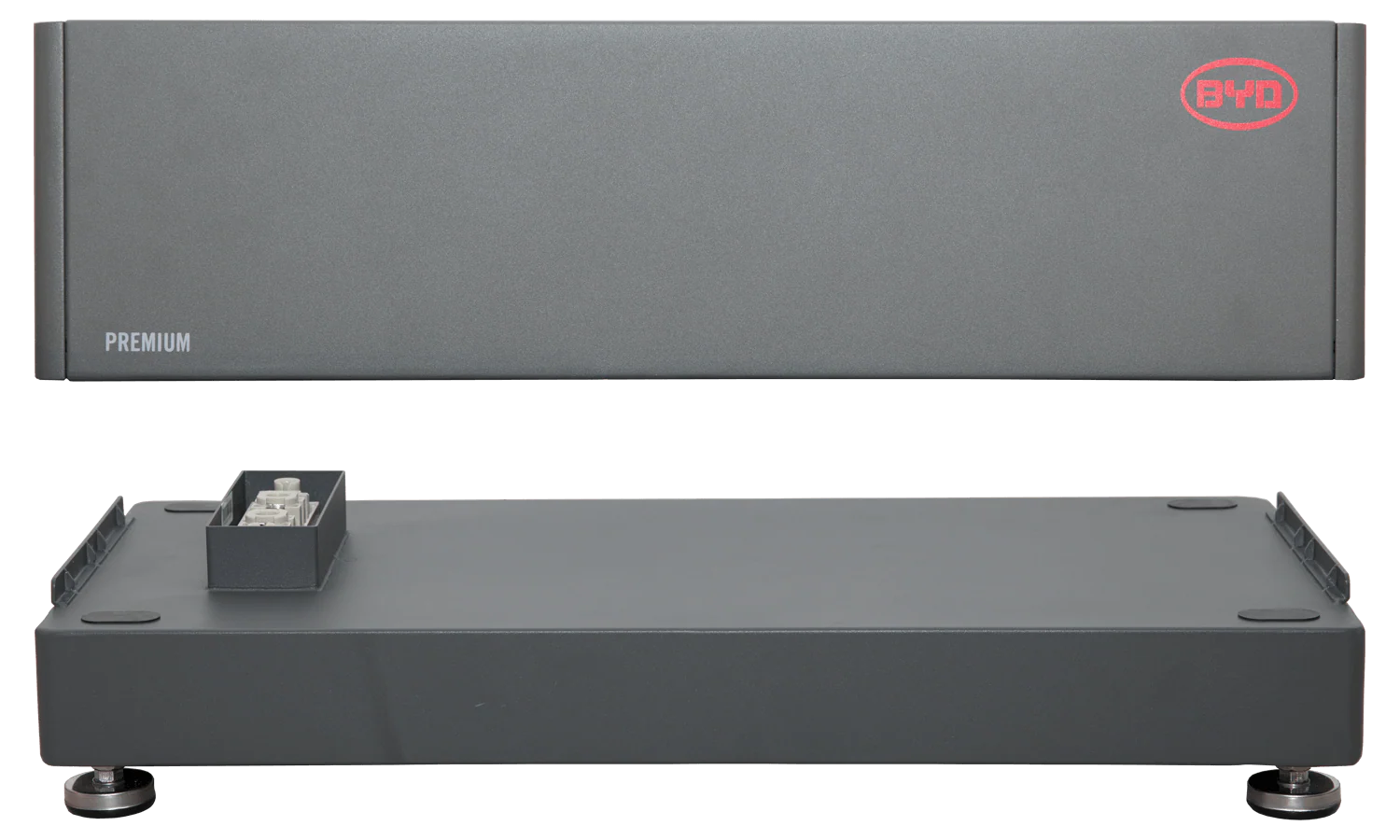

Additional LVS modules or parallel stacks can be added at any time to increase capacity, 1 PDU base and cover is required for each battery stack and 1 BMU per system/inverter.

• Scalable from 4 kWh to 256 kWh
• Maximum flexibility for any application with up to 64 modules connected in parallel
• Compatible with market leading 1 and 3 Phase Inverters
• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, life cycle and power
• Capable of High-Powered Emergency-Backup and Off-Grid Function
• Patented Internal Plug Design Requires No Additional Wiring
• Self-Consumption Optimization for Residential and Commercial Applications

Maximum current at different temperatures

Temperature	Maxium charge current	Maximum discharge current	Remarks
-10℃≤T<0℃	48A	48A	*N of the modules
0℃≤T<5℃	48A	65A	*N of the modules
5℃≤T<50℃	65A	65A	*N of the modules, up to 250A per tower



Note: Commissioning the battery requires a device capable of running the BYD Be Connect App - available for the Apple App Store and Google Play Store.

Excludes: Cat5 cable for communication between BMU and parallel stacks, 1x required per stack/PDU.
