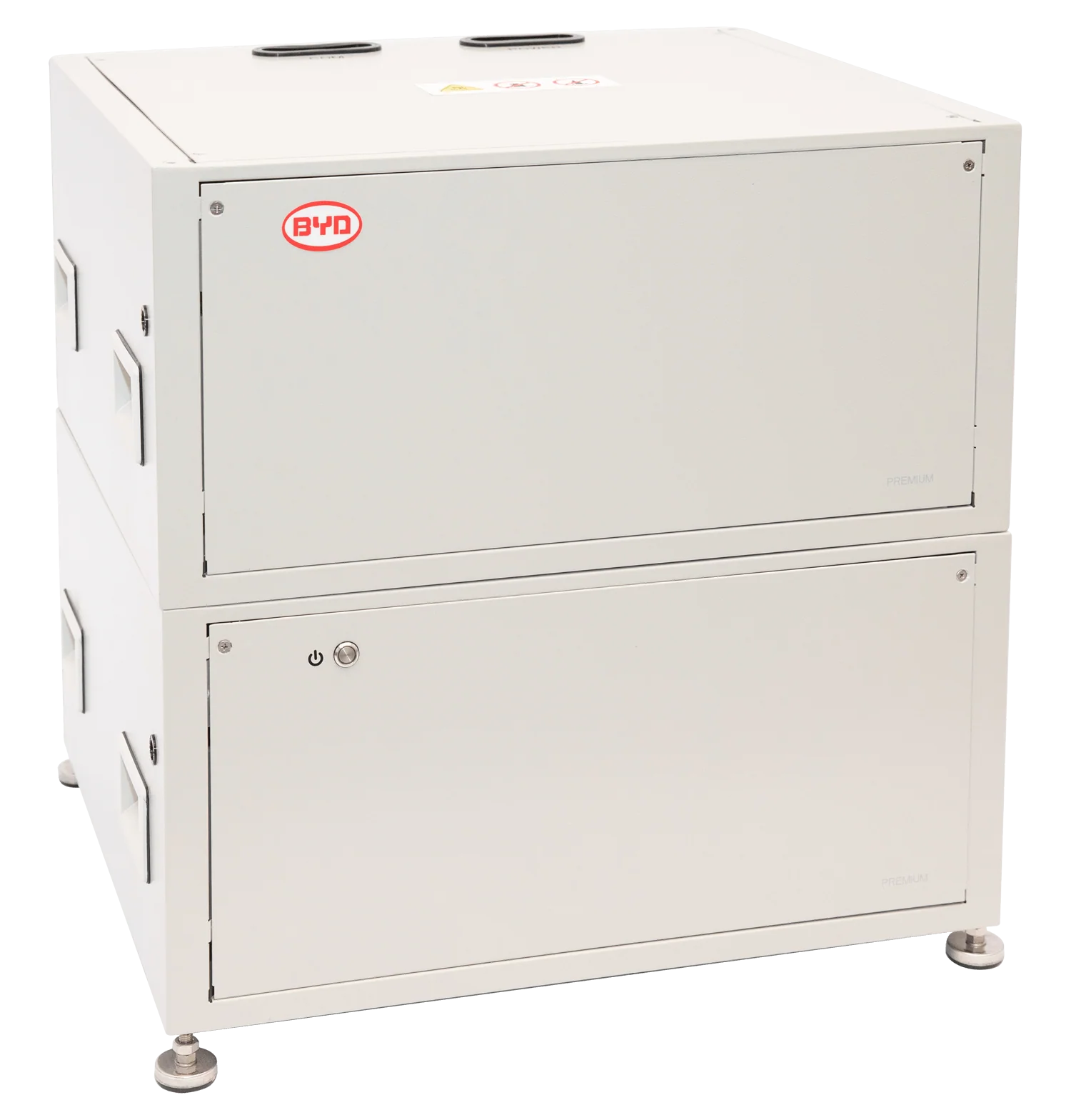

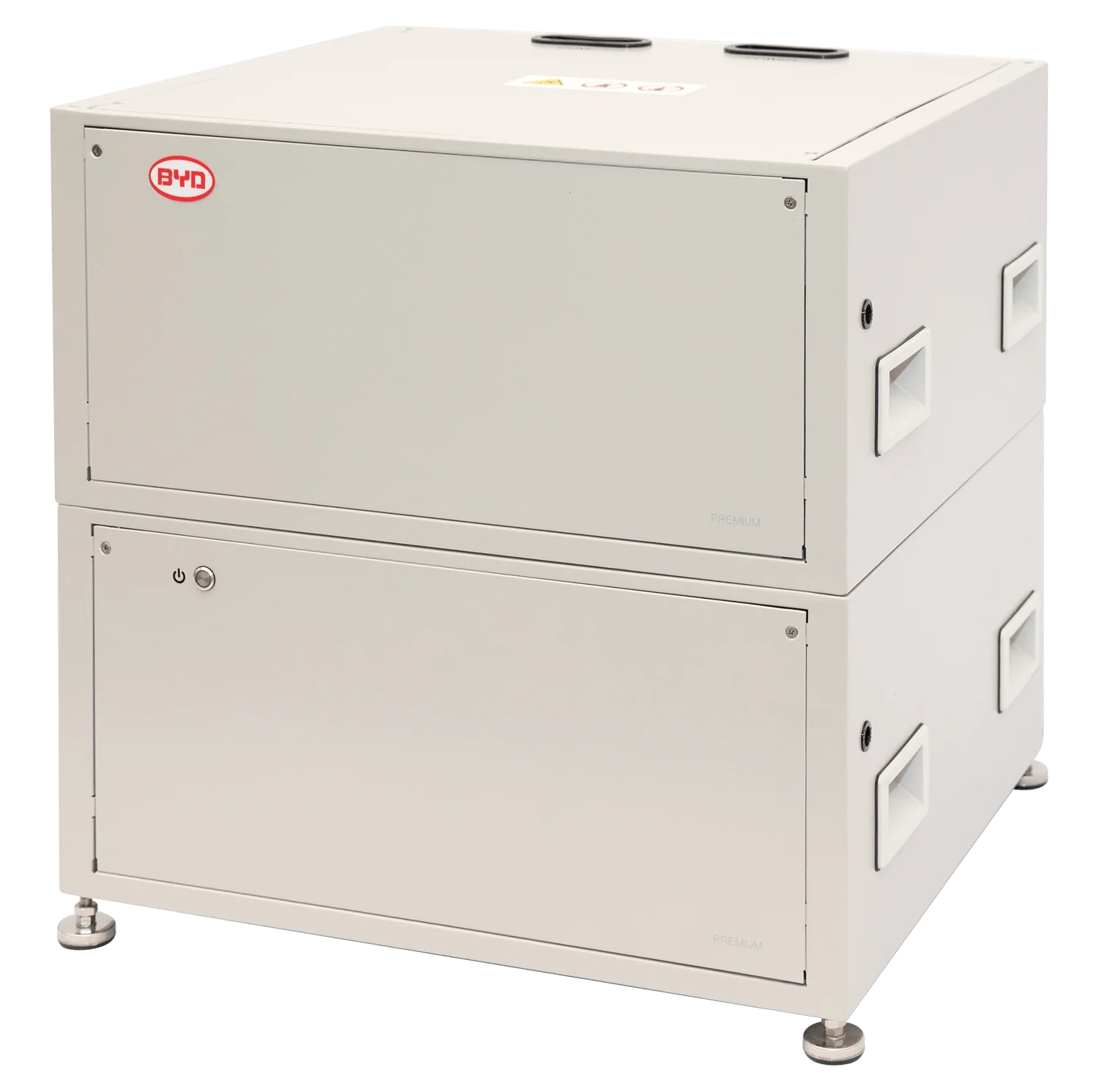

BYD Battery-Box Premium LVL

The BYD Battery-Box Premium LVL is a high capacity 48V lithium iron phosphate (LFP) battery for use with an external inverter.

Thanks to its control and communication port (BMU), the Battery-Box Premium LVL scales to meet the project requirements, no matter how large they may be. Start with Battery-Box Premium LVL15.4 (15.36 kWh) and extend anytime to 983 kWh using parallel interconnection of up to 64 batteries.

• Scalable from 15.4 to 983 kWh
• Compatible with 1 and 3 Phase Inverters
• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power
• Capable of High-Powered Back-up and Off-Grid Function
• Space Saving via the Ability to Stack 2 Premium Batteries
• Add Additional Batteries in Parallel at any time to Expand the System

Each system consisting of 1 inverter with up to 64 batteries requires 1 BMU.

Temperature derating: Like many lithium batteries temperature affects how fast the battery can charge and discharge. These latest BYD batteries have a very wide operating temperature range and will work at their peak performance ratings most of the time in most installations. Discharging isn't affected much by temperature, charging is affected mostly: below 5°C charge rate will reduce to 0.3C, below -2°C 0.05C.

Note: Commissioning the battery requires a device capable of running the BYD Be Connect App - available for the Apple App Store and Google Play Store.

Includes: Cat5 cable for communication between BMU and parallel stacks.
