BYD Battery-Box Premium HVS/HVM

The BYD Battery-Box Premium HVS and HVM are modular high voltage lithium iron phosphate (LFP) battery packs for use with an external inverter.

Battery-Box Premium HVS

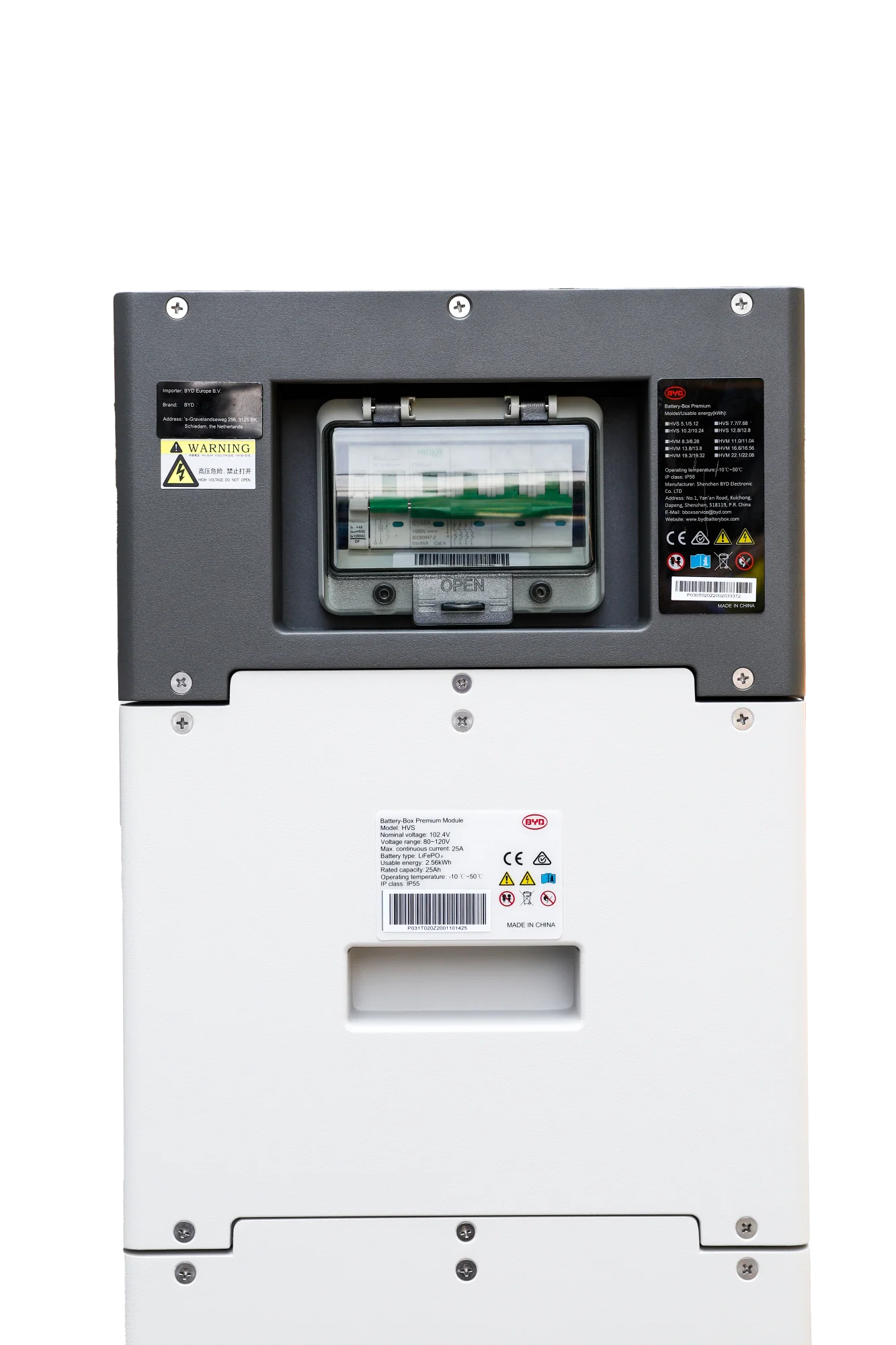

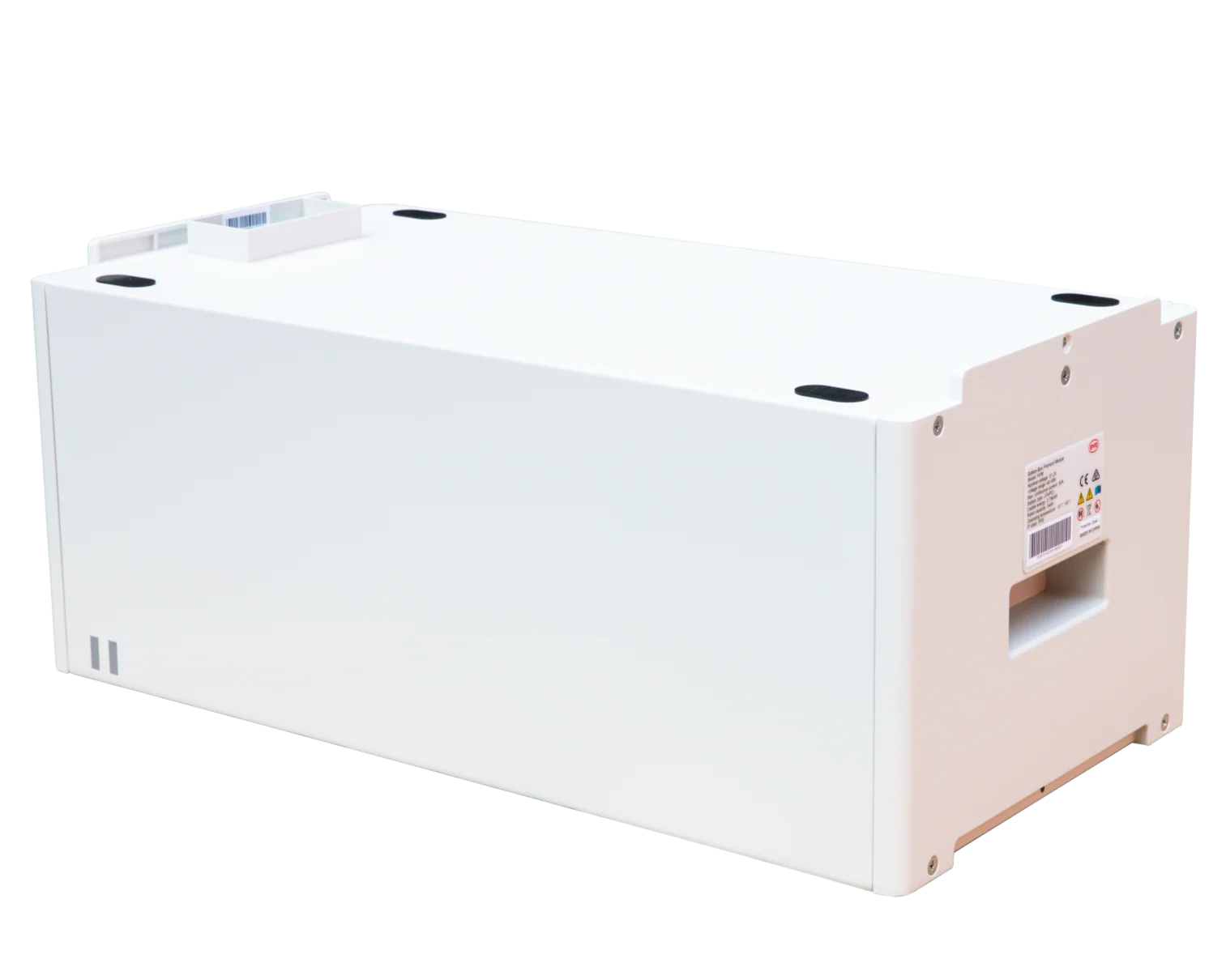

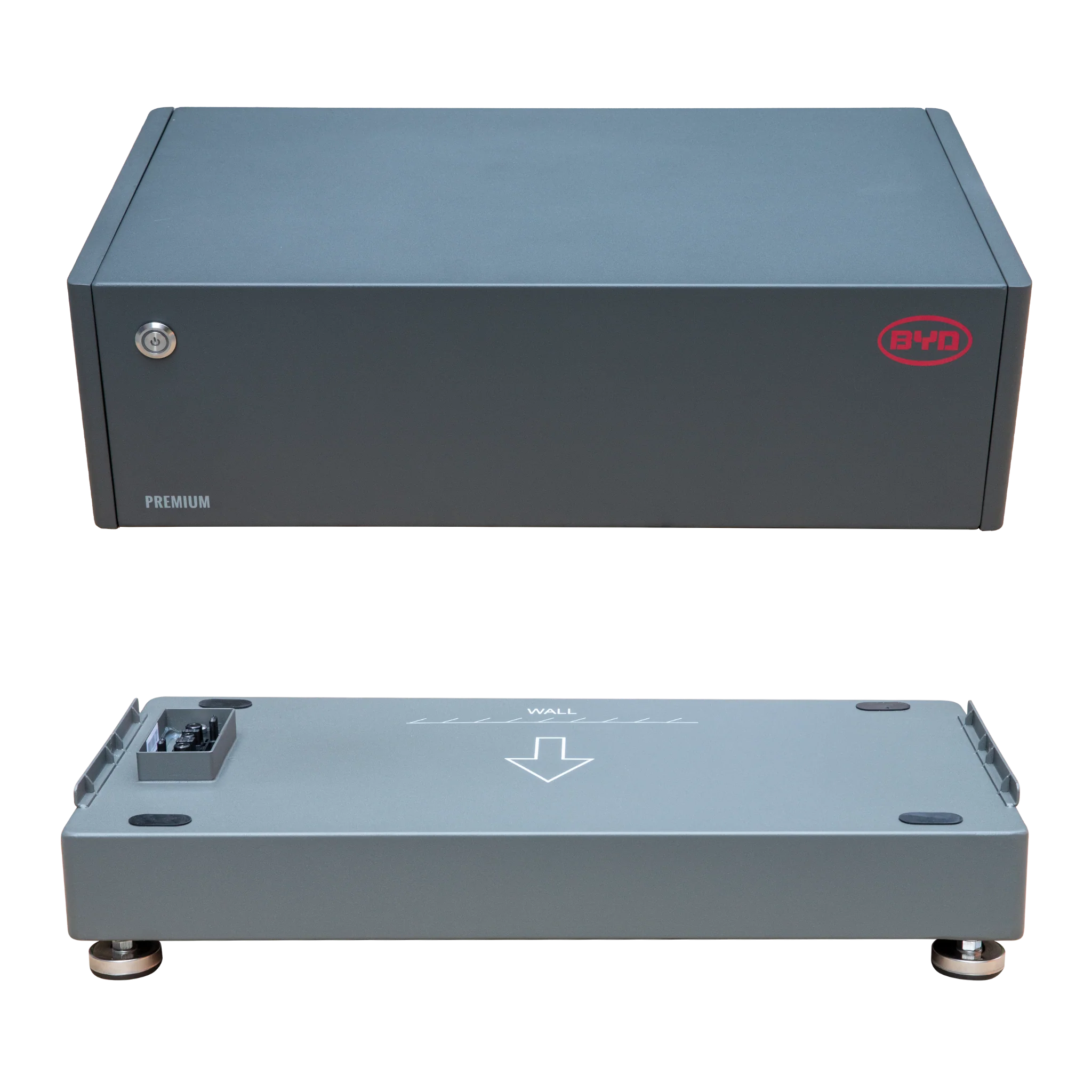

One Battery-Box Premium HVS is composed of 2 to 5 HVS battery modules, together with a BCU and Base, that are connected in series to achieve a usable capacity of 5.1 to 12.8 kWh*. Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVS allows a maximum capacity of 38.4 kWh*.

Battery-Box Premium HVM

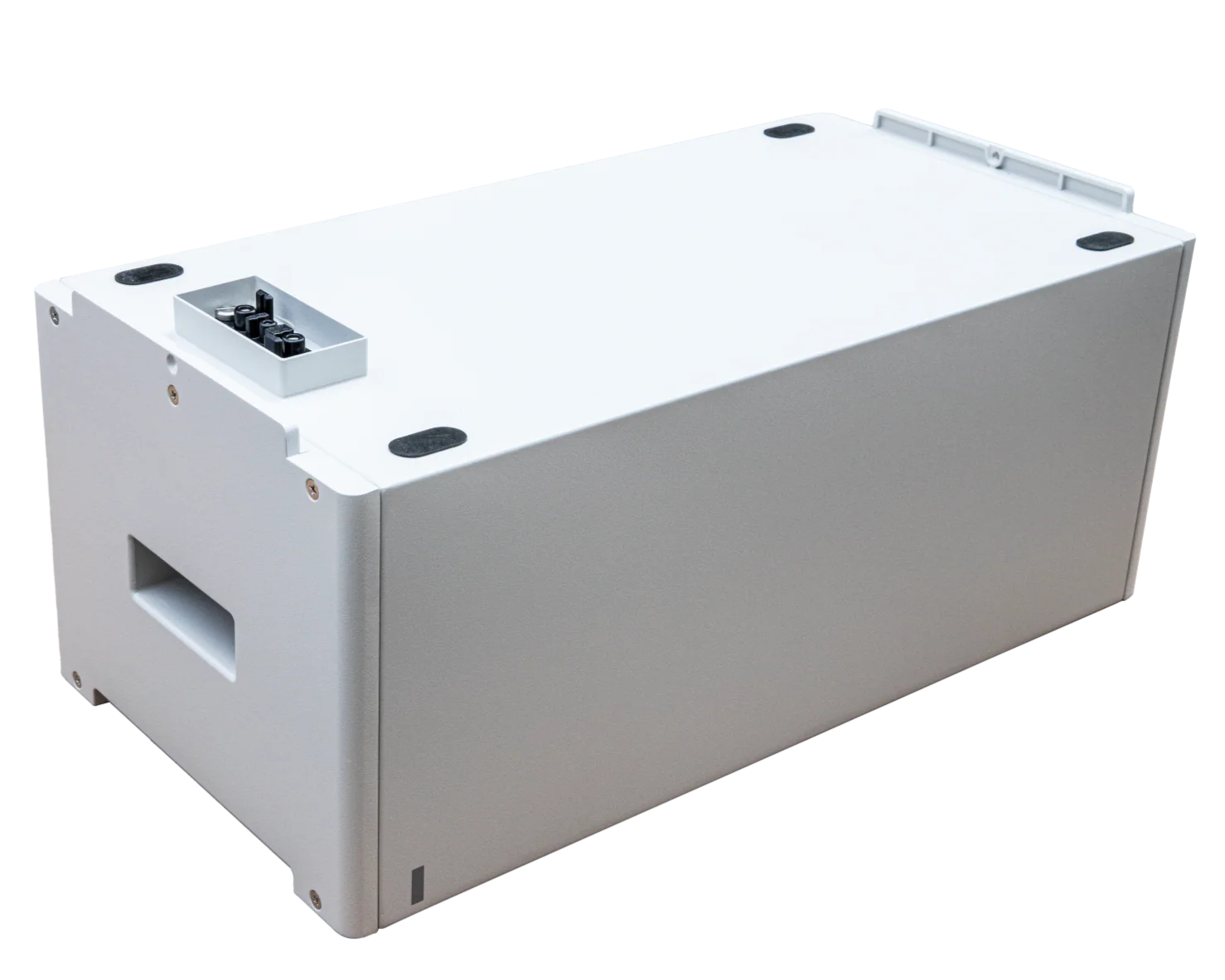

One Battery-Box Premium HVM is composed of 3 to 8 HVM battery modules, together with a BCU and Base, that are connected in series to achieve a usable capacity of 8.3 to 22.1 kWh*. Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVM allows a maximum capacity of 66.2 kWh*.

• Capable of High-Powered Emergency-Backup and Off-Grid Functionality
• Highest Efficiency Thanks to a Real High-Voltage Series Connection
• The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use
• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power
• Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters
• Two Distinct Modules to Cover the Complete Range of System Sizes
• Highest Safety Standards like VDE 2510-50
• IP55

Temperature derating: The BYD HVS only minimally derates at low temperature.

Temperature	Maximum Charge Current	Maximum Discharge Current
-10°C ≤ 0°C	20A	20A
0°C ≤ 5°C	25A	25A



Note:

Commissioning the battery requires a device capable of running the BYD Be Connect App - available for the Apple App Store and Google Play Store.

Parallel stacks must be identical models and sizes.

*Subject to inverter compatibility
