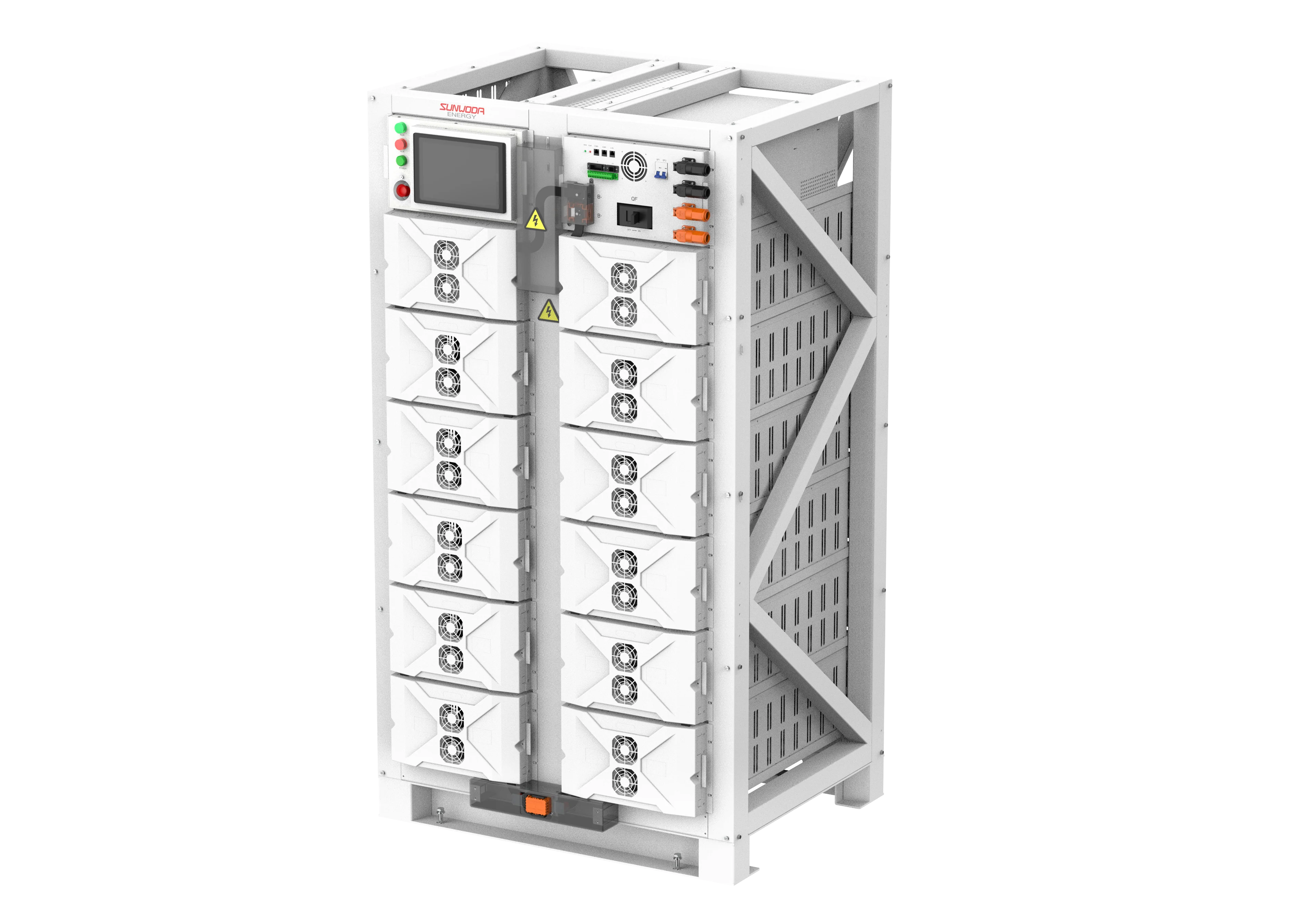

Sunwoda OASIS Rack Pro+

The Rack Pro+ is an indoor modular energy storage system designed to provide scalable battery capacity, allowing storage installations to expand as energy requirements grow.

Multi-Output Power: different inverter capacities can be used.

High Performance BMS: multi-level architecture using neural networks for intelligent SOC and SOH tracking.

Multi-Protection Design: cluster level active security isolation.

Flexible Installation: modular, plug and play installation with seamless parallel expansion.

Intelligent EMS: real-time monitoring, cloud set dimension, multi-platform display.

Key Features:

• Cell type: Lithium Iron Phosphate (LFP)
• Intelligent air cooling making it possible for operation from 0°C to 55°C
• Modular design build from 100 kWh up to 200 kWh
• 100% Depth of discharge to maximize economy
• Built-in safety functions and intelligent management

• Cabinet dimensions (H/W/D): 2060 x 1160 x 976mm
• IP20 Rated
• Compatible with the SMA Sunny Island X

Application Scenario:

• PV and storage integration
• Peak shaving and valley filling
• Emergency backup
• Micro-grid
• Cloud platform scheduling
