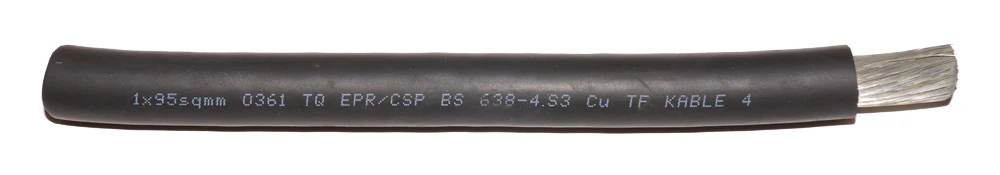

Flexible Battery/Inverter Cable

Flexible multi-strand single core cable. Rubber double insulation, tinned copper conductors Price per metre.

• Sheath - HOFR (Heat and Oil Resistant and Flame Retardant).
• Voltage Rating: 100V DC (450V for non-welding applications if suitably protected from mechanical damage)
• Temperature Rating: -20 to + 85 deg. C

Available in either black or orange (some sizes only).

Conductor Size sq.mm	Nominal Overall Diameter mm	Max. resistance at 20 deg. C Ohm/km	5 min Current Rating A
16	10.9	1.24	135
25	12.5	0.795	180
35	14.0	0.565	225
50	16.0	0.393	285
70	18.6	0.277	355
95	21.2	0.210	430
120	23.1	0.164	500



As conductor temperature varies according to the time in use as well as current the ratings shown are given as a guide.
