12/24 V DC Fuse Boxes

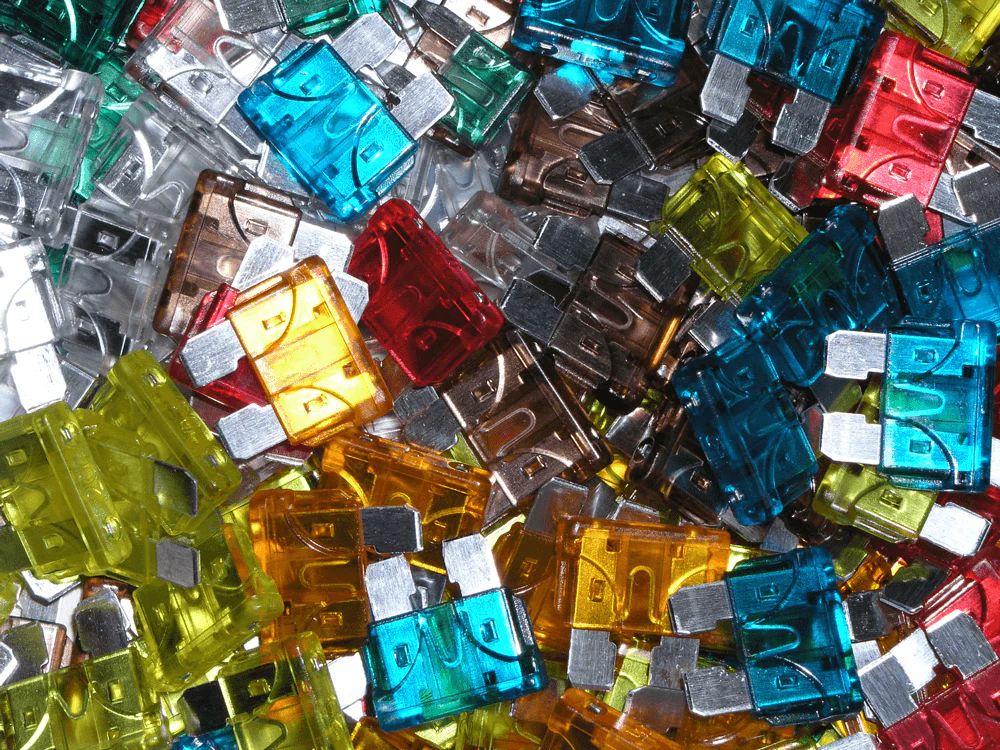

A convenient and neat way to provide circuit protection in small wind & PV battery based systems using standard (car type) blade fuses.

Fuse boxes

• Rated at up to 32 VDC and 100A total - max 30A per circuit.
• Clear insulating covers
• Accepts ring terminals
• Fuses sold separately

Common sourced fuse box consolidate 6 or 12 branch circuits to one supply.

Independent sourced fuse box acts as 6 in-line fuses for 6 circuits.

Junction boxes

Positive junction box allows for connection of one positive supply and includes 6 blade fuses for distribution to 6 circuits.

Negative junction box similarly splits one negative supply into 6 (no fuses)
